Diaphragm Wall Application Method

Diaphragm Wall Application Method

25 February 2019

A diaphragm wall is a reinforced concrete wall that is cast in sections or panels excavated in the ground. The trench held open during excavation, and installation of reinforcement and concrete by the use of a supporting slurry. The slurry forms an impervious deposit (cake) on the walls of the trench, isolating the hydraulic pressure of the slurry from the surrounding soil and ground water, such that this pressure exerts sufficient outward force to keep the trench open. The slurry mix can be based on the use of bentonite, or polymers or a mixture of the two.

The temporary guide walls are constructed in advance and consist of two reinforced-concrete sections depending on the thickness of diaphragm wall to be implemented.

The guide walls can be either cast-in-situ or precast. The guide-walls have several functions:

  • to provide physical confirmation of the location of the wall,
  • to guide the excavation tool,
  • to provide a reservoir for drilling mud,
  • to provide a fixed support for suspension of the reinforcement cages.

Individual panel lengths are determined by a number of factors including trench stability and the sensitivity of the surroundings to movement, or intensity of the reinforcement. The wall can be constructed very close to existing structures though a minimum clearance is required for the thickness of the guide wall. When excavation of a panel is complete the slurry is treated to reduce the quantity of solids in suspension to a predetermined acceptable level.

The joint between adjacent panels can be achieved like:

  • By use of a temporary steel stop end allowing the placement of a waterstop across the joint and providing at the same time a guide for the excavating tool.
  • The standard thicknesses of diaphragm walls are in the range of 40 cm to 200 cm typically being 40cm, 50cm, 60 cm, 80 cm, 100 cm, 120 cm, 150cm, 180 cm and 200 cm. Panel excavation is done by diaphragm wall machines like mechanical or hydraulic grab, and hydrofreeze.

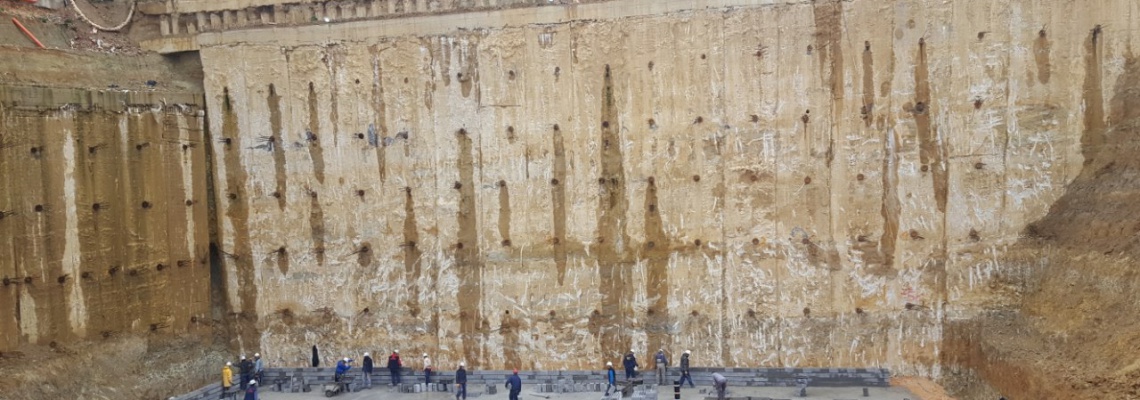

Diaphragm walls are ideal solution for deep excavation shoring structures under high ground water level.

Diaphragm walls can be built as a temporary shoring structure, as well as permanent structures. Diaphragm walls give great advantages to limit deformations during shoring excavation because of their of rigidity. In addition, they have other functions, such as vertical load-bearing elements and hydraulic cut-off.
