Bored Pile Grab

  • Discharging of the grab jaws is rapid and easy, besides maximum capacity of grabbing.

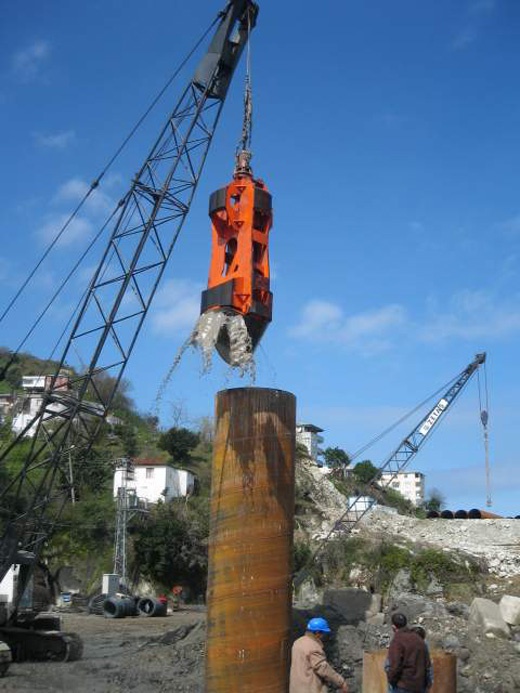

  • The hammer grab is the most important tool in pile construction and it determines the drilling progress.
  • The entire construction is stress relieved and extremely strong.
  • Surfaces exposed to abrasion are manufactured by Hadox 500 material.
  • Chassis and arms that required endurance are manufactured by Weldox 700 material.
  • Guide and holders are manufactured by S 355 material.
  • Presented as two different systems as follows:

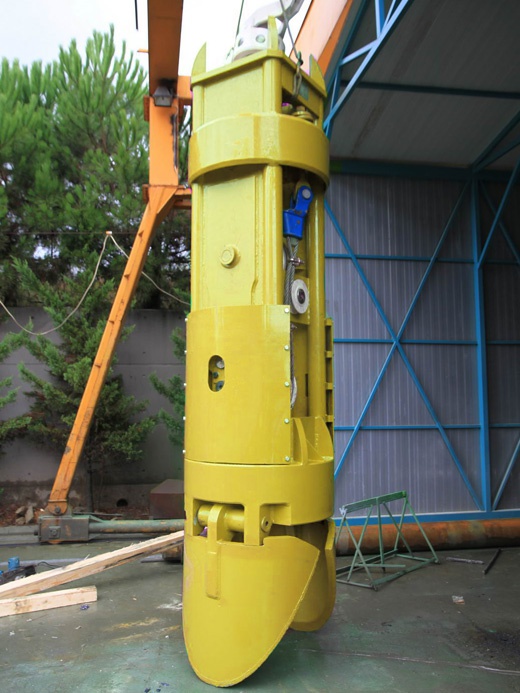

    • Pulley System

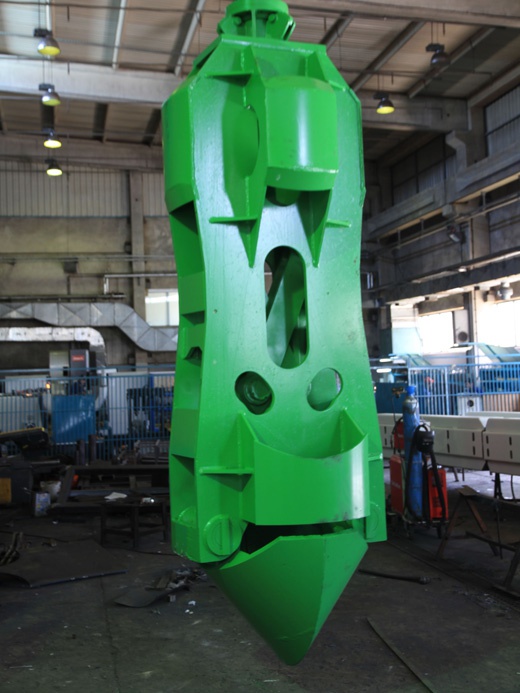

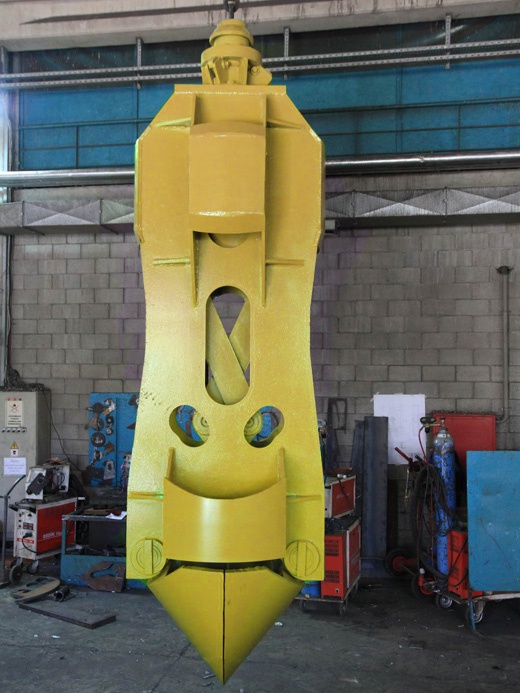

    • X-Linked Sytem
Type Jaws Opening (mm) Length (mm) Capacity Weight
ZKL 1000 1000 4000 450 3500
ZKL1200 1200 4400 600 4500
ZKL1300 1300 4500 850 6800
ZKL1500 1500 4700 1100 7400
ZKL1600 1600 4970 1250 7900
ZKL1800 1800 5430 1700 9600
ZKL2000 2000 5600 1800 10000
ZKL2200 2200 5700 1900 12300
ZKL2500 2500 6830 2400 14000
