Jean Lutz
BAP

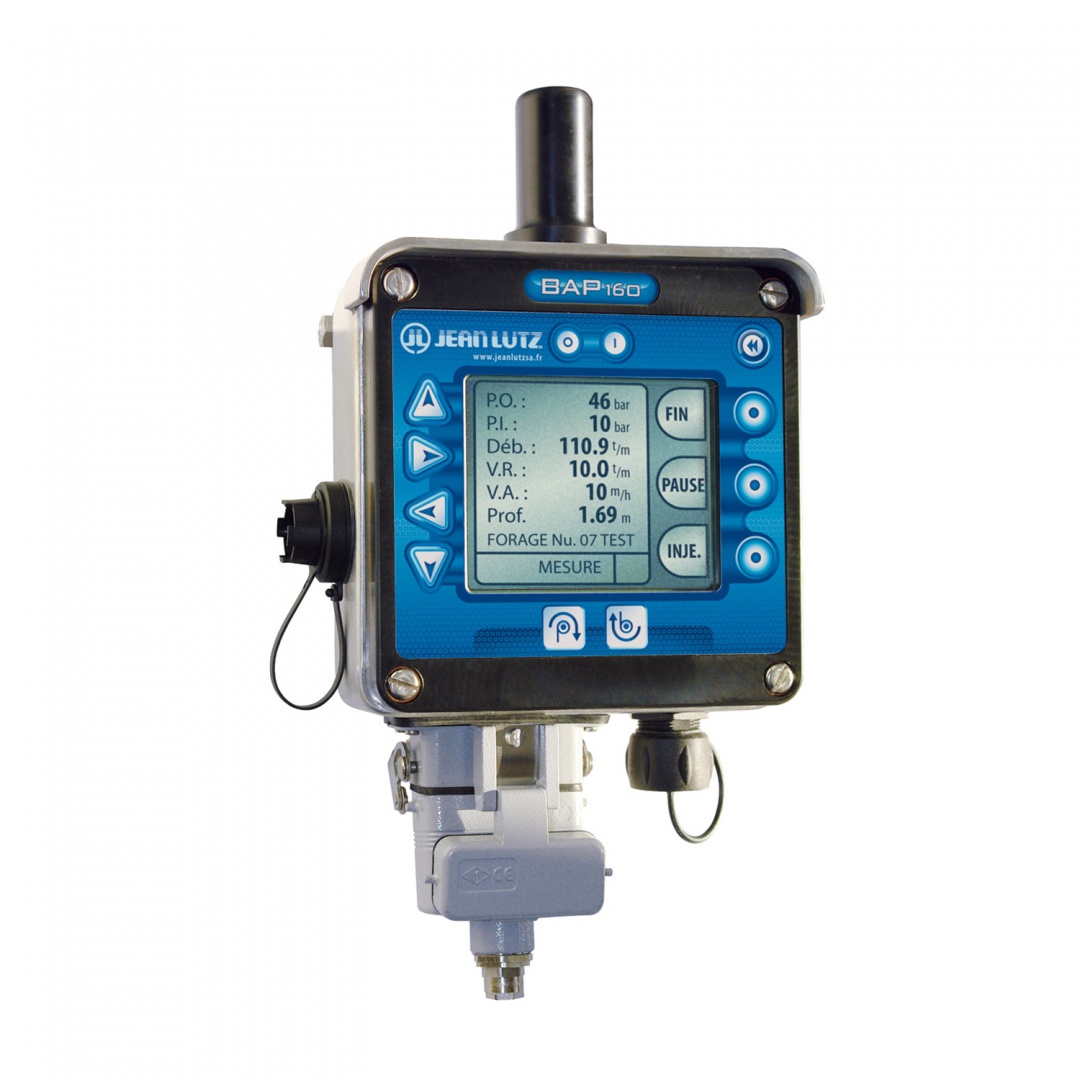

The BAP160 is enclosed in rustproof sealed housing. It has a very high contrast black & white graphics screen, data can be stored on a USB flash drive.
BAP
The integrated MEMOTEL function will transmit measurements across GSM / GPRS / 3G / Internet networks in real time. Additionally, it will provide site GPS positioning.
Processes
- Driven piles
- Injection
- Drilling parameters
- Vibro driving
- Soil investigation
- Power supply: 12 - 24 VDC or 24 VAC.
- Dimensions: 288 x 198 x 103 mm.
- Weight: 3 kg.
- Temperature range: -20°C / +75°C.
- Internal memory up to 800 drillings.
- Data transfer using the USB drive or by Internet.
