Dialog MX

Dialog MX

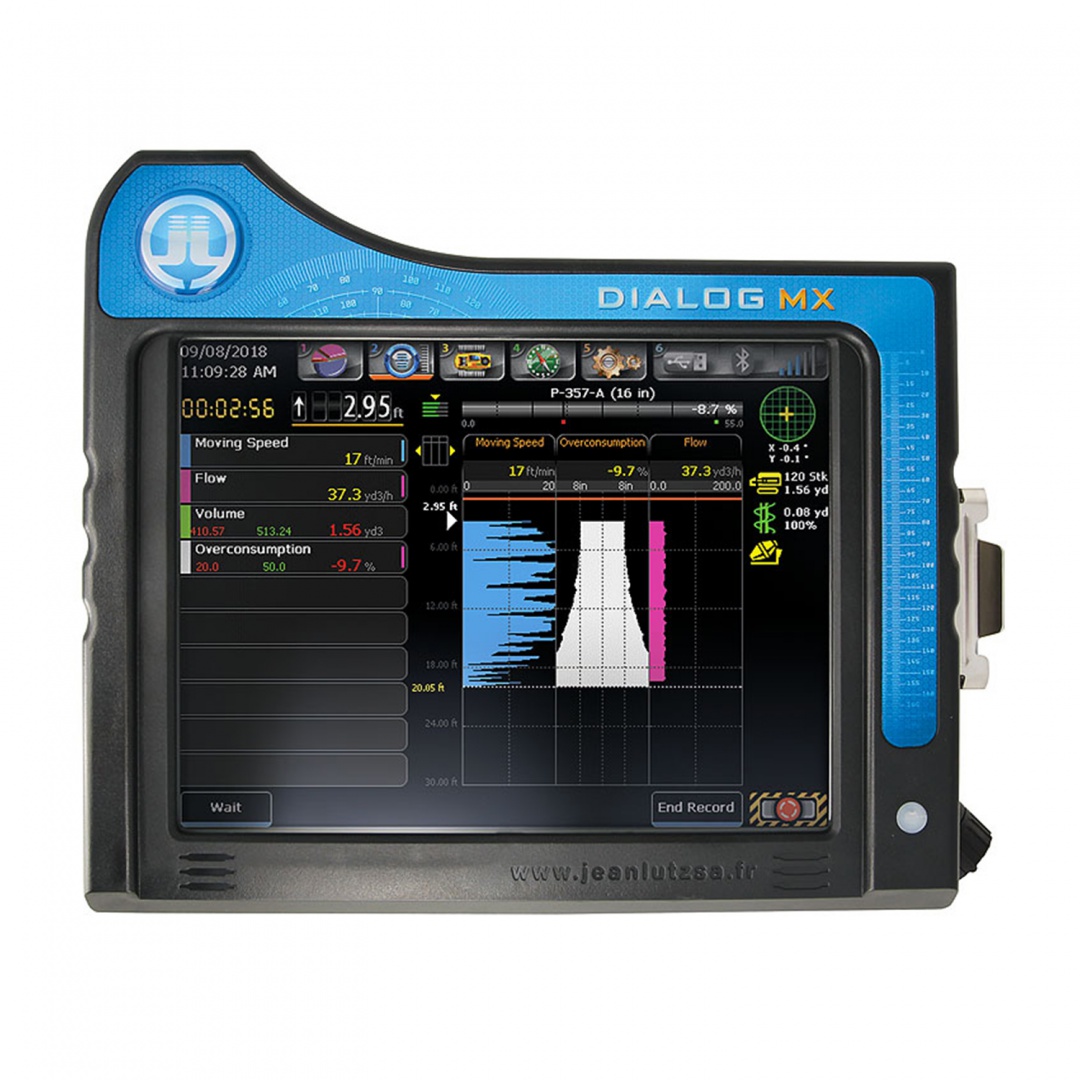

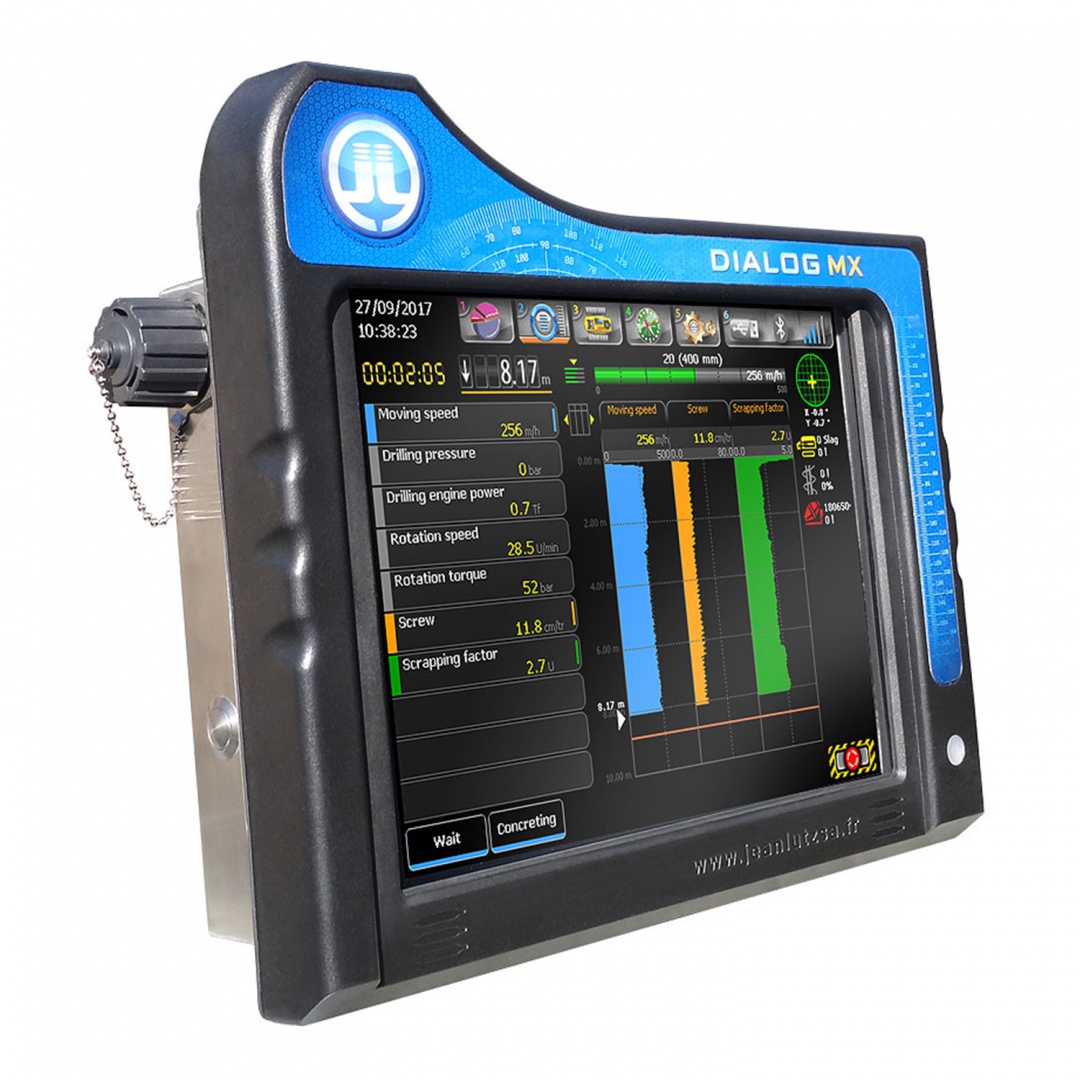

The DIALOG MX is designed to measure and control special deep foundation processes. Equipped with a touch screen, rugged and ergonomic, it is easy to use.

TEKLİF İSTE

DIALOG MX

The DIALOG MX can be used for efficient data synchronization between users permanently or intermittently when connected to a corporate network.

Configuration and updating as well as schedule settings can be carried out remotely. The DIALOG is equipped with an internal GPS for localization purposes; it can also be configured for monitoring machine components.



Processes

  • Continuous flight augers.
  • Injection.
  • Soil mixing.
  • Jet grouting.
  • Vibro-Driving.
  • Vibro-Flotation.
  • Ballasted columns.
  • Wall verticality.



  • Power supply: 12 - 24 VDC or 24 VAC.
  • Dimensions: 254 x 360 x 100 mm.
  • Weight: 6 kg.
  • Temperature range: -20°C / +75°C.
  • Internal memory (flash memory).
  • Data transfer using the USB drive or by Internet
